RUP - solution for seismic monitoring

RUP2004/RUP2009 is a PC-based recorder for continuous seismic monitoring. It is designed using standard peripherals and sophisticated software. Depending on specification it offers wide dynamic range of data resolution (up to 28-bit). High dynamic range is very important for scientific measurements. The resolution of 14-bit is suitable for monitoring of strong technological events such as quarry blasts but is also useful for temporary measurements.

Technical specification

28-bit

21-bit

14-bit

14-bit

analog inputs

4

4

16

8

basic sampling frequency [Hz]

250, 500, 1000

250, 500, 1000

125, 250, 500, 1000

125, 250, 500, 1000, 2000

digital filter corner, Low Pass [Hz]

40 (optional)

sampling of stored signal, typical [Hz]

100 (optional)

input range [V]

±2.5, ±1.25, ±0.675, ±0.3125, ±0.15625

±2

±0.2, ±0.5, ±1, ±2, ±5, ±10

±0.2, ±0.5, ±1, ±2, ±5, ±10

trigger criterion

Continuous Recording, STA (optional)

time synchronization

GPS (RMC sentense), Pulse Per Second

connectivity

LAN, GPRS, SMS

network services

FTP, SSH, SFTP, Remote Desktop

data format

GSE 2.0 (INT)

format conversion utility - gse2txt

ASCII, mSEED



download

demo

GIF animation

gse2txt (0.1.12.2)

datasheet (21bit, Czech)

manual (21bit, Czech)

latest version
14bit-08ch (0.1.25.3)

14bit-16ch (0.1.25.3)

business datasheet (Czech)

21bit (0.1.25.3)

28bit (0.1.25.3)

16bit (0.1.25.3)
(discontinued)

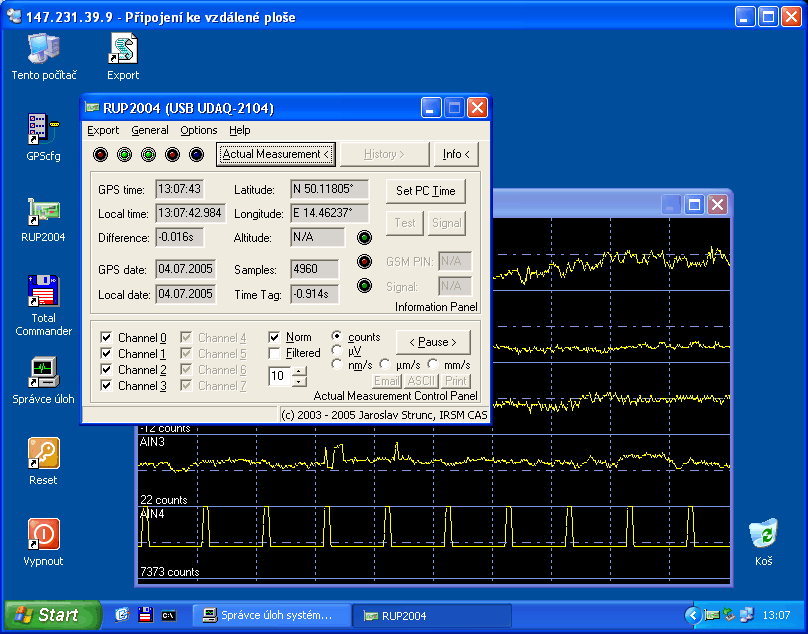

Station Screen

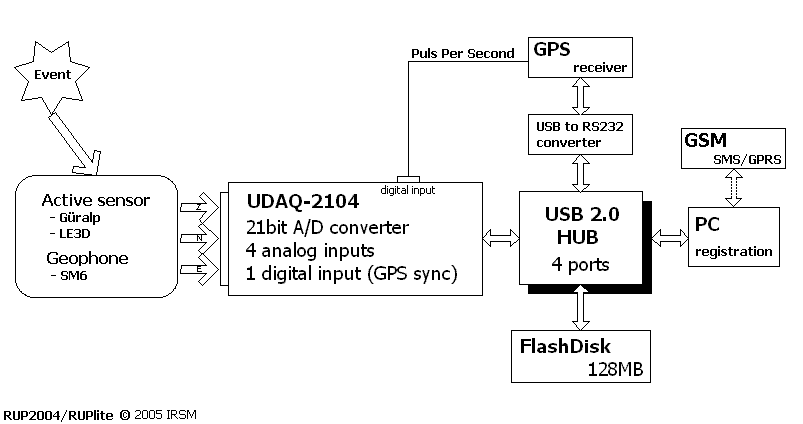

Recorder Diagram

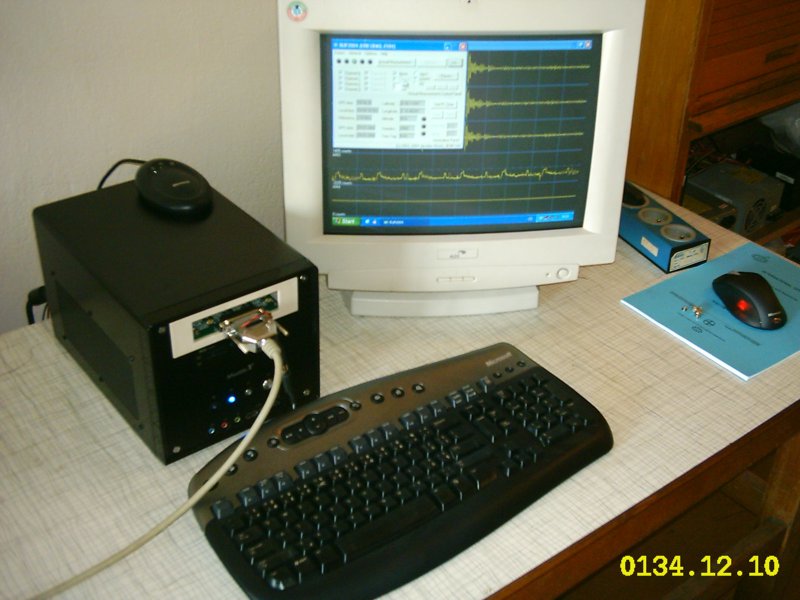

Complete Recorder



Contact

Ing. Jaroslav Štrunc

Ing. Milan Brož, CSc.

strunc@irsm.cas.cz

mbroz@irsm.cas.cz

Department of Seismology, IRSM AS CR
